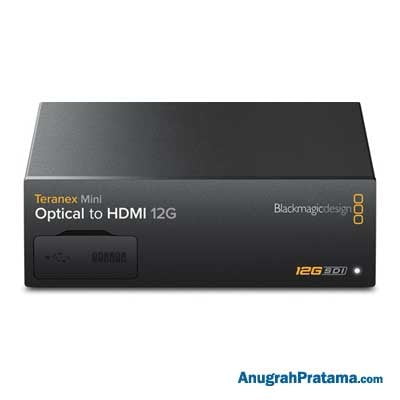

BLACKMAGIC DESIGN Teranex Mini Optical to HDMI 12G

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Teranex Mini Optical to HDMI 12G

Spesifikasi:

Connections

• SDI Video Inputs : 1x 12G-SDI SD/HD/2K/4K auto switching
• Optical Fiber Connection (optional) : Optional 3G, 6G or 12G-SDI single mode 1310 nm SFP module with LC connector
• Optical Fiber Video Inputs : 1x 12G-SDI SD/HD/2K/4K auto switching
• Optical Fiber Video Loop Through : 1x 12G-SDI loop output
• HDMI Video Outputs : 1x HDMI 2.0 type A connector with support for 2160p60
• Analog Audio Outputs : 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output
• Digital Audio Outputs : 4 channels professional 110 ohm balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output
• Embedded Audio Support : 8 channels
• Multi Rate Support : Auto detection of SD, HD or 12G-SDI
• Updates and Configuration : USB and Ethernet
• Reclocking : Yes

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
• SDI Video Rates : SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI
• SDI Video Sampling : 4:2:2 and 4:4:4
• SDI Audio Sampling : Television standard sample rate of 48 kHz and 24-bit
• SDI Color Precision : 4:2:2 and 4:4:4
• SDI Color Space : YUV & RGB

HDMI Output Standards

• HDMI Color Space : REC 601, REC 709
• HDMI Color Precision : YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K

Software

• Software Control : Mac and Windows software upgrade via USB or Ethernet
• Internal Software Upgrade : Via included updater application

Operating Systems

• Mac 10.15 Catalina, Mac 11.1 Big Sur or later
• Windows 10 64-bit

Settings Control

• Basic Settings Control : Mini Switches, USB and Ethernet via free software utility
• Optional Front Panel Control : Front mounted Smart Panel with LCD, rotary knob and six settings buttons

Power Requirements

• Power Supply : 1x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 – 240V AC Input
• Power Over Ethernet : Can be powered via 48V DC using PoE+ (power over ethernet)
• Power Consumption : 16W
• Operational Voltage Range : 100 – 240V AC

Garansi produk: 3 year Limited Manufacturer? Warranty
