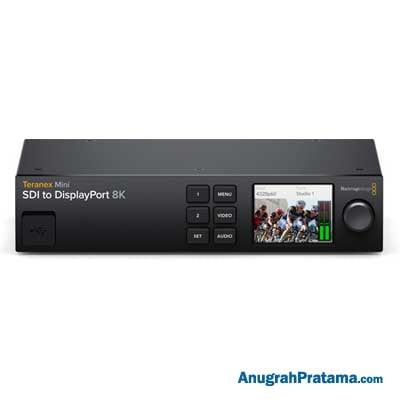

BLACKMAGIC DESIGN Teranex Mini SDI to DisplayPort 8K HDR

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Teranex Mini SDI to DisplayPort 8K HDR

Spesifikasi:

Connections

• SDI Video Inputs : 4x 12G-SDI HD/2K/4K/8K auto switching (Dual and quad link 12G-SDI for 8K only)
• SDI Video Outputs : 4x 12G-SDI loop output
• DisplayPort Video Outputs : 2x full size DisplayPort connectors Single used for 4K video and both used for uncompressed 8K video ; 1 x USB-C DisplayPort connector Compatible with certified passive DisplayPort over USB-C cables
• Analog Audio Outputs : 2 channels analog audio via RCA connectors
• Embedded Audio Support : 16 channels of embedded audio on all SDI loop outputs and 8 channels on the DisplayPort outputs
• Multi Rate Support : 1.5G, 3G, 6G, 12G, 2SI Dual Link 12G-SDI, 2SI Quad Link 12G-SDI, Square Division Quad Link 12G-SDI
• Updates and Configuration : Front USB-C or Ethernet
• Reclocking : Yes

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
• SDI Video Rates : SDI video connections are switchable between 1.5G SDI, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI
• SDI Video Sampling : 4:2:2 and 4:4:4
• SDI Audio Sampling : Television standard sample rate of 48 kHz and 24-bit
• SDI Color Precision : 4:2:2 and 4:4:4
• SDI Color Space : YUV and RGB

DisplayPort Output Standards

• DisplayPort Color Space : REC 709, REC 2020
• DisplayPort Color Precision : YUV 4:2:2 and RGB 4:4:4 in HD, 2K, 4K and 8K. 33 point LUTs can be loaded via Teranex Utility or calibration LUT generated from calibration probe test

Scopes

• Scopes : Waveform, RGB/YUV Parade, Vector, Histogram
• Viewing Modes : Two by scopes with picture overlay with opacity control. Waveform and Parade with standard and HDR graticules

HDR

• Conversion : Output can be set to SDR, HLG or PQ

Software

• Software Control : Mac OS X and Windows software upgrade via USB-C or Ethernet
• Internal Software Upgrade : Via included updater application

Operating Systems

• Mac 10.14 Mojave, Mac 10.15 Catalina or later
• Windows 10 64-bit

Settings Control

• 6 buttons and spin knob for menu and settings control
• 2.2 inch color LCD display.

Power Requirements

• Power Supply : 1x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 – 240V AC Input.
• Power Consumption : 35W
• Operational Voltage Range : 100 – 240V AC

Garansi produk: 1 year Limited Manufacturer? Warranty
