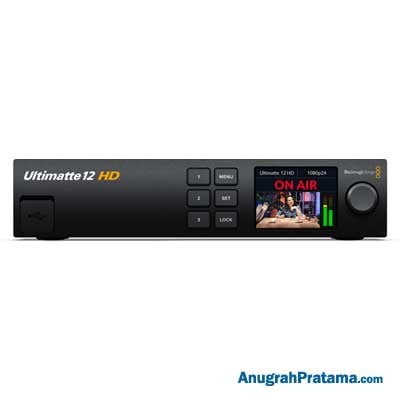

BLACKMAGIC DESIGN Ultimatte 12 HD

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Ultimatte 12 HD

Spesifikasi:

Connections

• SDI Video Inputs : 5
• SDI Video Outputs : 4
• SDI Video Loop Outputs : 1 (reclocked SD or HD Camera FG)
• SDI Rates : 270Mb, 1.5G, 3G
• Video Input Re-Sync : On all inputs
• Reference Connections : 1x BNC In, 1x BNC Out (Tri-Sync or Black Burst)
• GPIO : DE15
• Ethernet : Up to 1Gb/s for device control and loading stills into Media Pool
• Computer Interface : 1x USB-C 3.0 for device configuration and software updates

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B
• Video Sampling : 4:2:2
• Color Precision : 10-bit
• Color Space : REC 601, REC 709, REC 2020
• Multiple Rate Support : Auto detection of SD and HD

Composite Sources

• Foreground : 1x 3G-SDI In with Loop Out
• Background : 1x 3G-SDI In, Still from Media Pool
• Background Matte : Internal Window, Still from Media Pool
• Garbage Matte : 1x 3G-SDI In, Internal Window, Still from Media Pool
• Holdout Matte : 1x 3G-SDI In, Internal Window, Still from Media Pool
• Layer : Still from Media Pool
• Layer Matte : Internal Window, Still from Media Pool

Composite Outputs

• Fill : 1x 3G-SDI
• Matte : 1x 3G-SDI
• Program : 1x 3G-SDI

Monitor

• Monitor In : 1x 3G-SDI (for monitor cascade)
• Monitor Out : 1x 3G-SDI (For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction)

Media Pool

• Background Still Image Formats : TGA, TIFF, BMP, PNG, JPG
• Background with Alpha Still Image Formats : TGA, TIFF, BMP
• Layer Image Still Image Formats : TGA, TIFF, BMP, PNG, JPG
• Layer with Alpha Still Image Formats : TGA, TIFF, BMP
• Garbage Matte Still Image Formats : TIFF, BMP, PNG, JPG
• Holdout Matte Still Image Formats : TIFF, BMP, PNG, JPG
• Media Pool Memory : 6GB non-volatile internal storage

Displays

• Built in 2.2 inch color display for device name, video preview, video standard audio meters, status and menus

Control

• Front Panel : 2.2 inch color display, 3 preset buttons, 3 menu buttons and spin knob
• Control Connection : Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4
• Software Control : Ultimatte Software Control, supported on Mac or Windows computers
• Hardware Control Panel : Ultimatte Smart Remote 4
• Custom Control : Ethernet protocol and GPIO pin out included in the Ultimatte instruction manual

Software

• Software Updates : Using USB-C or Ethernet connection to Mac or Windows computers
• Configuration : Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB

Operating Systems

• Mac 11.0 Big Sur, Mac 12.0 Monterey or later
• Windows 10 64-bit, Windows 11

Power Requirements

• Power Supply : 1x Internal 100-240V AC, 50/60Hz
• Power Usage : 15W

Garansi produk: 12 Month Limited Manufacturer’s Warranty
