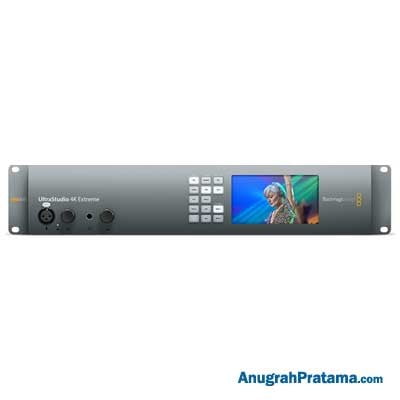

BLACKMAGIC DESIGN UltraStudio 4K Extreme 3

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN UltraStudio 4K Extreme 3

Spesifikasi:

Connections

• SDI Video Inputs : 2x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable
• SDI Video Outputs : 2x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable
• SDI Rates : 270Mb, 1.5G, 3G, 6G, 12G
• Optical SDI : Supports 2 optional SMPTE modules
• SDI Video Loop : 4x reclocked SD/HD/2K/4K linked to corresponding inputs

SDI Video Repeated Outputs : 2x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable

• Analog Video Inputs : 1x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC
• Analog Video Outputs : 1x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC
• Analog Audio Inputs : 4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors
• Analog Audio Outputs : 4 Channels of professional balanced analog audio via XLR connectors
• Optical Fiber Inputs/Outputs (Optional) : 2x 12Gb/s Optical Fiber
• AES/EBU Audio Inputs : 2 Channels unbalanced with sample rate converter on BNC connector
• AES/EBU Audio Outputs : 2 Channels unbalanced on BNC connector
• SDI Audio Inputs : 16 Channels embedded in SD/HD/2K/4K
• SDI Audio Outputs : 16 Channels embedded in SD/HD/2K/4K
• HDMI Video Inputs : HDMI 2.0 type A connector with support for 2160p60
• HDMI Video Outputs : HDMI 2.0 type A connector with support for 2160p60
• HDMI Audio Inputs : 8 Channels embedded in SD/HD/4K
• HDMI Audio Outputs : 8 Channels embedded in SD/HD/4K
• Mic Input : 1x 48V microphone input via XLR connector. Phantom Power switchable via software control
• Timecode Input : 1x XLR Input
• Timecode Output : 1x XLR Output
• Sync Input : 1x Reference input. Tri-Sync or Black Burst
• Sync Output : 1x Reference Loop Output. Tri-Sync or Black Burst
• Computer Interface : Thunderbolt 3 (Mac OS and Windows), PCI Express 4 lane generation 2
• Power : 2x built-in international AC power supply with IEC C14 inlet. 100-240V, 50-60Hz

Supported Codecs

• AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4

Software

• Software Included : DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
• Internal Software Upgrade : Firmware built into software driver. Software driver loads upgrades at system start or via updater software

Software Applications

• DaVinci Resolve
• Fusion
• Final Cut Pro X
• Adobe Premiere Pro CC
• Avid Media Composer
• Adobe After Effects CC
• Avid Pro Tools
• Steinberg Cubase
• Steinberg Nuendo
• Adobe Photoshop CC

SDI Video Standards

• SDI Compliance : SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 435, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2081-11, SMPTE 2082-10, SMPTE ST2108-1, ITU-R BT.656 and ITU-R BT.601
• SDI Metadata Support : RP 188/SMPTE 12M-2 and closed captioning
• SDI Audio Sampling : Television standard sample rate of 48 kHz and 24-bit
• SDI Video Sampling : 4:4:4, 4:2:2
• SDI Color Space : REC 601, REC 709, REC 2020
• HDR Support : HDR metadata packing, HLG and PQ transfer characteristics
• SDI Configuration : SDI output is configurable for Quad Link 3Gb/s via Blackmagic Desktop Video Utility. When using single link 12Gb/s on SDI A or dual link 6Gb/s on SDI A and B, SDI C and D will output downconverted HD

HDMI Video Standards

• HDMI Audio Sampling : Television standard sample rate of 48 kHz and 24-bit
• HDMI Video Sampling : 4:4:4, 4:2:2, 4:2:0
• HDMI Color Space : REC 601, REC 709, REC 2020
• HDR Support : HDR static metadata packing, HLG and PQ transfer characteristics
• HDMI Configuration : HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display
• Multiple Rate Support : HDMI and SDI video connections are switchable between SD/HD/UHD and 4K. Component analog video connections are switchable between SD and HD
• Copy Protection : HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

General

• Computer Capture : 2x Thunderbolt 3 for Mac and Windows plus PCI Express Gen 2 for Mac, Windows and Linux, Includes Blackmagic Desktop Video SDK
• Built in Control Panel : 14 buttons for input selection. 5 inch color display
• Device Control : 2x RS-422 deck control

Operating Systems

• Mac 11.1 Big Sur, Mac 12.0 Monterey or later
• Windows 10 64-bit, Windows 11
• Linux

Power Requirements

• 2x Internal 100 – 240V AC

Garansi produk: 3 Year Limited Manufacturer’s Warranty
