Deskripsi

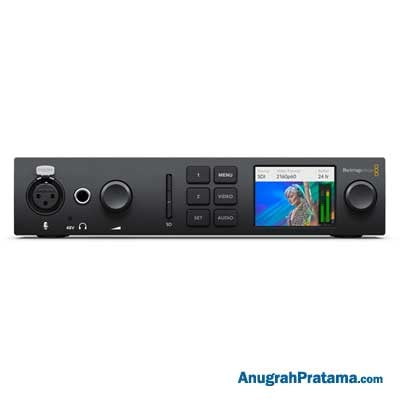

Anugrahpratama.com Jual BLACKMAGIC DESIGN UltraStudio 4K Mini
Spesifikasi:
Connections
- SDI Video Inputs : 1
- SDI Video Outputs : 2x program out, 1 x loop out
- SDI Rates : 270Mb, 1.5G, 3G, 6G, 12G
- Analog Video Inputs : Component YUV or Composite NTSC/PAL. Component is switchable between SD and HD
- Analog Audio Inputs : 2 channels of professional balanced analog audio with 1/4 inch Jack connectors
- Analog Audio Outputs : 2 channels of professional balanced analog audio with 1/4 inch Jack connectors
- SDI Audio Inputs : 16 Channels embedded in SD/HD/2K/UHD/4K
- SDI Audio Outputs : 16 Channels embedded in SD/HD/2K/UHD/4K
- HDMI 2.0b Video Inputs : 1
- HDMI 2.0b Video Outputs : 1
- HDMI Audio Inputs : 8 Channels embedded in SD/HD/UHD/4K
- HDMI Audio Outputs : 8 Channels embedded in SD/HD/UHD/4K
- Mic Input : 1x XLR microphone input. 48V Phantom Power switchable via software control
- Sync Input : Tri-Sync or Black Burst
- Device Control : Sony compatible RS-422 deck control port. Serial ports TxRx direction reversible under software control
- USB : 1x USB-C 3.1 Gen 1 (up to 5 Gb/s)
- SD Card Reader : UHS-I and UHS-II compatible
- Computer Interface : Thunderbolt 3 (Mac OS, Windows and Linux) with 45W host charging capability
Supported Codecs
- AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
Software
- Software Included : DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
- Internal Software Upgrade : Firmware built into software driver. Software driver loads upgrades at system start or via updater software
Software Applications
- DaVinci Resolve
- Fusion
- Final Cut Pro X
- Adobe Premiere Pro CC
- Adobe After Effects CC
- Adobe Photoshop CC
- Adobe Character Animator CC
- Avid Media Composer
- Avid Pro Tools
- Steinberg Cubase
- Steinberg Nuendo
SDI Video Standards
- SDI Compliance : SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2036-1, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2082-10 and SMPTE ST2108-1
- SDI Metadata Support : RP 188/SMPTE 12M-2 and closed captioning
- Multiple Rate Support : SDI video connections are switchable between SD/HD/2K/UHD and 4K
- SDI Audio Sampling : Television standard sample rate of 48 kHz and 24-bit
- SDI Video Sampling : 4:2:2, 4:4:4
- SDI Color Precision : 8, 10, 12-bit RGB 4:4:4 in 2D modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all 2D modes ;
8, 10, 12-bit RGB 4:4:4 in 3D modes up to 2Kp60 DCI and 8, 10-bit YUV 4:2:2 in all 3D modes
- SDI Color Space : REC 601, REC 709 and REC 2020
- HDR Support : HDR static metadata packing, HLG and PQ transfer characteristics
HDMI Video Standards
- HDMI Audio Sampling : Television standard sample rate of 48 kHz and 24 bit
- HDMI Video Sampling : 4:4:4, 4:2:2 and 4:2:0
- HDMI Color Precision : 8, 10 and 12-bit
- HDMI Configuration : HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display
- HDMI Color Space : REC 601, REC 709 and REC 2020
- HDR Support : HDR static metadata packing, HLG and PQ transfer characteristics
- Multiple Rate Support : HDMI video connections are switchable between SD/HD/UHD and 4K
- Copy Protection : HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
Operating Systems
- Mac 11.1 Big Sur, Mac 12.0 Monterey or later
- Windows 10 64-bit, Windows 11
- Linux
Power Requirements
- Power Supply : 1x Internal 100 – 240V AC
- Power Usage : 75.3W max
Garansi produk: 3 Year Limited Manufacturer’s Warranty
