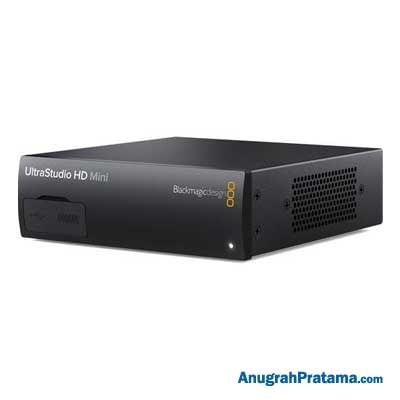

BLACKMAGIC DESIGN UltraStudio HD Mini

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN UltraStudio HD Mini

Spesifikasi:

Connections

• SDI Video Inputs : 1x 3Gb/s SD/HD switchable
• SDI Video Outputs : 2x 3Gb/s SD/HD switchable, supports fill and key
• SDI Rates : 270Mb, 1.5G, 3G
• Optical SDI : None
• HDMI Video Inputs : None
• HDMI Video Outputs : 1x HDMI 1.4b type A connector
• Analog Video Inputs : Y, B-Y, R-Y/NTSC/PAL
• Analog Video Outputs : None
• Analog Audio Inputs : 2x 1/4 inch jack connectors for balanced and unbalanced analog audio
• Analog Audio Outputs : None, embedded audio only
• SDI Audio Inputs : 16 Channels embedded in SD and HD
• SDI Audio Outputs : 16 Channels embedded in SD and HD
• HDMI Audio Outputs : 2 Channels embedded in SD and HD
• Timecode Connection : None. RP-188 only
• Reference Input : Tri-Sync or Black Burst

Supported Codecs

• AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHD, DNxHR, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2

Software

• Software Included : Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
• Internal Software Upgrade : Firmware built into software driver. Software driver loads upgrades at system start or via updater software

Software Applications

• DaVinci Resolve
• Fusion
• Final Cut Pro X
• Adobe Premiere Pro CC
• Avid Media Composer
• Adobe After Effects CC
• Adobe Photoshop CC
• Avid Pro Tools
• Steinberg Cubase
• Steinberg Nuendo

Video Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M A/B
• SDI Metadata Support : RP 188/SMPTE 12M-2 and closed captioning
• SDI Audio Sampling : Television rate of 48kHz and 24 bit
• SDI Video Sampling : 4:2:2, 4:4:4
• SDI Color Precision : 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards
• SDI Color Space : REC 601, REC 709
• HDMI Resolution : Pixel for pixel HD resolution input from connected device
• Multiple Rate support : SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s

General

• Computer Capture : 1x Thunderbolt 3 for Mac and Windows. Powers from Thunderbolt host computer, includes Blackmagic Desktop Video SDK
• Built in Control Panel : None. Supports Teranex Mini Smart Panel with 2.2 inch color display for video preview, audio meters and status
• Device Control : 1x RS-422 deck control

Operating Systems

• Mac 11.1 Big Sur, Mac 12.0 Monterey or later
• Windows 10 64-bit, Windows 11
• Linux

Power Consumption

• Powered by Thunderbolt cable. Requires computer with a Thunderbolt 3 USB-C port

Garansi produk: 3 Year Limited Manufacturer’s Warranty
