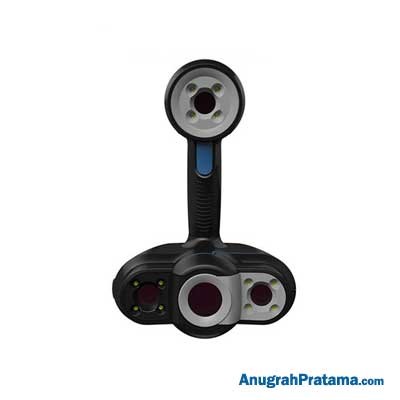

CREAFORM Go!SCAN 50 3D Scanner [SYS-G3D-PGO50]

Deskripsi

Anugrahpratama.com Jual CREAFORM Go!SCAN 50 3D Scanner [SYS-G3D-PGO50]

Resolution: 0.500 mm

Spesifikasi:

• MEASUREMENT RATE : 550,000 measurements/s
• SCANNING AREA : 380 x 380 mm
• LIGHT SOURCE : White light (LED)
• ACCURACY : Up to 0.100 mm
• VOLUMETRIC ACCURACY : 0.300 mm/m
• POSITIONING METHODS : Geometry and/or color and/or targets
• STAND-OFF DISTANCE : 400 mm
• DEPTH-OF-FIELD : 250 mm
• PART SIZE RANGE (Recommended) : 0.3 – 3.0 m
• TEXTURE RESOLUTION : 50 to 250 DPI
• TEXTURE COLORS : 24 bits
• SOFTWARE : Vxelements
• OUTPUT FORMATS : .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
• COMPATIBLE SOFTWARE : 3D Systems (Geomagic Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systemes (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, PowerINSPECT).
• OPERATING TEMPERATURE RANGE : 5-40C
• OPERATING HUMIDITY RANGE (non-condensing) : 10-90%
• CERTIFICATIONS : EC Compliance (Electromagnetic Compatibilit y Directive, Low VoltageDirective), IP50, WEEE
• VX MODEL : post-treatment software that directly integrates into VXelements and seamlessly allows to finalize 3D scan data for use directly in any CAD or 3D printing software. VXmodel provides the simplest and fastest path from 3D scans to your CAD or additive manufacturing workflow

Antarmuka / Interface: 1 x USB 2.0

Garansi produk: 1 Year (Manufacturing Defect Only)
