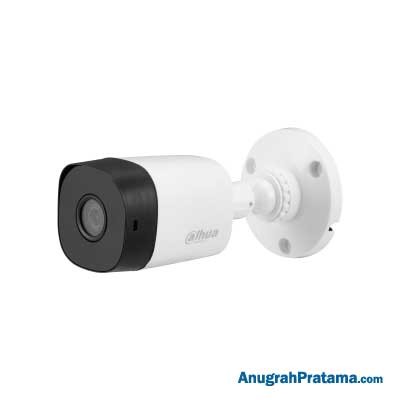

DAHUA HAC-B1A41 4MP HDCVI IR Bullet Camera

Deskripsi

Anugrahpratama.com Jual DAHUA HAC-B1A41 4MP HDCVI IR Bullet Camera

Viewing Angle: H: 76.4 .deg (97 .deg, 48.6 .deg), V: 41.6 .deg (52 .deg, 27.9 .deg)

Frame Rate: 25/30fps@4MP,25/30fps@1080P

Pixels: 4MP, 2560(H)1440(V)
Pan Range: 0 .deg – 360 .deg
Tilt Range: 0 .deg to 90 .deg

Max Speed: Electronic Shutter Speed : PAL: 1/25 to 1/100000s, NTSC: 1/30 to 1/100000s
Min Illumination: 0.04Lux/F2.0, 30IRE, 0Lux IR on

BLC: BLC / HLC / DWDR
IR LED:

• IR Distance : Up to 20m (66feet)
• IR On/Off Control : Auto / Manual

Lens Focal Length: 2.8mm, 3.6mm, 6mm optional, Angle of View: 103(2.8mm), 82.2(3.6mm), 54(6mm)
White Balance: Auto / Manual

Spesifikasi:

Camera :
• Scanning System : Progressive
• S/N Ratio : More than 65dB
• Rotation : 0 .deg to 360 .deg

Lens :
• Lens Type : Fixed lens / Fixed iris
• Mount Type : Board-in
• Max Aperture : F2.0
• Close Focus Distance : 1400mm (800mm,2500mm), 55.12 inch (31.50 inch, 98.43 inch)

Video :
• Video Output : 1-channel BNC high definition video output / CVBS video output (Can switch)
• Day/Night : Auto (ICR) / Manual
• WDR : DWDR
• Gain Control : AGC
• Noise Reduction : 2D
• Smart IR : Auto / Manual

Eelectrical :
• Power Supply : 12V DC +-30%
• Power Consumption : Max. 3.9W (12V DC, IR on)

DORI Distance :
• Detect : DORI Definition: 25px/m (8px/ft), Distance: 3.6mm: 80m(262ft), 6mm: 120m(394ft)
• Observe : DORI Definition: 63px/m (19px/ft), Distance: 3.6mm: 32m(105ft), 6mm: 48m(157ft)
• Recognize : DORI Definition: 125px/m (38px/ft), Distance: 3.6mm: 16m(52ft), 6mm: 24m(79ft)
• Identify : DORI Definition: 250ppm (76px/ft), DIstance: 3.6mm: 8m(26ft), 6mm: 12m(39ft)

1 Tahun
