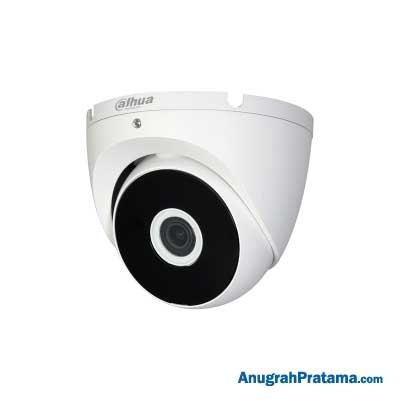

DAHUA HAC-T2A21 2MP HDCVI IR Eyeball Camera

Deskripsi

Anugrahpratama.com Jual DAHUA HAC-T2A21 2MP HDCVI IR Eyeball Camera

Viewing Angle: H: 93 .deg (103 .deg, 54.7 .deg)

Frame Rate: 25/30fps@1080P, 25/30/50/60fps@720P

Pixels: 2MP, 1920(H)1080(V)
Pan Range: 0 .deg – 360 .deg
Tilt Range: 0 .deg to 78 .deg

Max Speed: Electronic Shutter Speed : PAL: 1/25 to 1/100000s, NTSC: 1/30 to 1/100000s
Min Illumination: 0.04Lux/F1.85, 30IRE, 0Lux IR on

BLC: BLC / HLC / DWDR
IR LED:

• IR Distance : Up to 20m (66feet)
• IR On/Off Control : Auto / Manual

Lens Focal Length: 2.8 mm, 3.6 mm
White Balance: Auto / Manual

Spesifikasi:

Camera :
• Scanning System : Progressive
• S/N Ratio : More than 65dB
• Rotation : 0 .deg to 360 .deg

Lens :
• Lens Type : Fixed lens / Fixed iris
• Mount Type : Board-in
• Max Aperture : F1.85
• Close Focus Distance : 800mm (2000mm), 31.5 inch (78.74 inch)

Video :
• Video Output : 1-channel BNC high definition video output / CVBS video output (Can switch)
• Day/Night : Auto (ICR) / Manual
• WDR : DWDR
• Gain Control : AGC
• Noise Reduction : 2D
• Smart IR : Auto / Manual

Eelectrical :
• Power Supply : 12V DC +-30%
• Power Consumption : Max 2.7W (12V DC, IR on)

DORI Distance :
• Detect : DORI Definition: 25px/m (8px/ft), Distance: 2.8mm: 37m(121ft), 3.6mm: 51m(167ft), 6mm: 80m(262ft)
• Observe : DORI Definition: 63px/m (19px/ft), Distance: 2.8mm: 15m(49ft), 3.6mm: 20m(66ft), 6mm: 32m(105ft)
• Recognize : DORI Definition: 125px/m (38px/ft), Distance: 2.8mm: 8m(26ft), 3.6mm: 10m(33ft), 6mm: 16m(52ft)
• Identify : DORI Definition: 250ppm (76px/ft), Distance: 2.8mm: 4m(14ft), 3.6mm: 5m(17ft), 6mm: 8m(26ft)

1 Tahun
