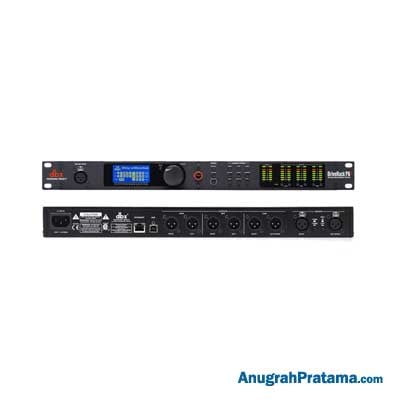

DBX DriveRack PA2 Complete Loudspeaker Management System

Deskripsi

Anugrahpratama.com Jual DBX DriveRack PA2 Complete Loudspeaker Management System
Spesifikasi:

• Input : (2) line inputs. (1) RTA Mic input
• Input Connectors : (2) Female XLR line inputs. (1) Female XLR RTA Mic input
• Input Type : Electronically balanced/RF filtered
• Input Impedance : >50 kohm
• A/D Converter : dbx Type IV Conversion System
• CMRR : > 45dB
• Mic Preamp Phantom Power : +15VDC (RTA)
• Mic Preamp Equivalent Input Noise (EIN) : < -117dB, 22Hz-22kHz, 150 ohm (RTA)
• Output : (6) Line Outputs
• Output Connectors : Male XLR
• Output Type : Electronically balanced, RF filtered
• Output Impedance : 120 ohm
• Max Output : +20dBu
• A/D Dynamic Range : 112 dB A-weighted, 110 dB unweighted
• Type IV Dynamic Range : 123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW
• Input Delay Length : 100ms
• Alignment Delay : 10ms per channel (60ms total)
• Sample Rate : 48kHz
• Dynamic Range : >110 dB A-weighted, >107dB unweighted
• THD+Noise : 0.003% typical at +4dBu, 1kHz, 0dB input gain
• Frequency Response : 20Hz – 20kHz, +/- 0.5dB
• Interchannel Crosstalk : < -110 dB, -120dB typical (input-to-output: < -100 dB)
• Operating Voltage : 100-120VAC 50/60 Hz – EU: 220-240 VAC 50/60 Hz
• Power Consumption : 22 W
• D/A Dynamic Range : 112 dB A-weighted, 110dB unweighted

Garansi produk: 1 Tahun
