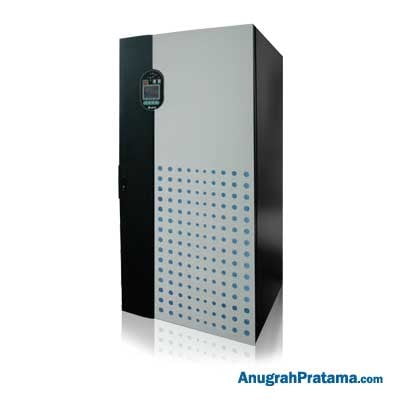

DELTA Ultron DPS-200K Three Phase UPS (200kVA/180kW)

Deskripsi

Anugrahpratama.com Jual DELTA Ultron DPS-200K Three Phase UPS (200kVA/180kW)

Spesifikasi:

Input :
• Voltage Range : 324 – 477 Vac (full load), 242 – 324 Vac (70% – 100% load)
• Current Harmonic Distortion : < 3%
• Power Factor : > 0.99
• Frequency : 45 – 65Hz

Output :
• Output Power Factor : 0.9 (standard), 1 (optional)
• Voltage Harmonic Distortion : </= 1.5% (linear load), < 1% (linear load)
• Voltage Regulation : +/- 1% (static)
• Frequency : 50/60 +/- 0.05 Hz
• Overload Capability : </= 125%: 10 minutes, </= 150%: 1 minute

<b<Other Features :
• Display : Mimic LCD supports multi-language and LED indicators
• Parallel Redundancy : Up to 8 units
• Emergency Power Off : Local and remote
• Event Log : 500 records
• IP Protection : IP20
• Audible Noise : <70 dBA

Antarmuka / Interface:

• 1x RS232
• 2x Smart slot
• 6x Output dry contact
• 7x Input dry contact – Input dry contact (two sets)
• 1x REPO
• 1x External battery cabinet status detection
• 4x External battery cabinet temperature detection
• 2x Parallel port
• 1x USB port

Daya / Power: 200kVA/180kW

Garansi produk: 2 Tahun

Voltase Masuk: 380/220, 400/230, 415/240 Vac (3 phase, 4-wire + G)
Voltase Keluar: 380/220, 400/230, 415/240 Vac (3 phase, 4-wire + G)
