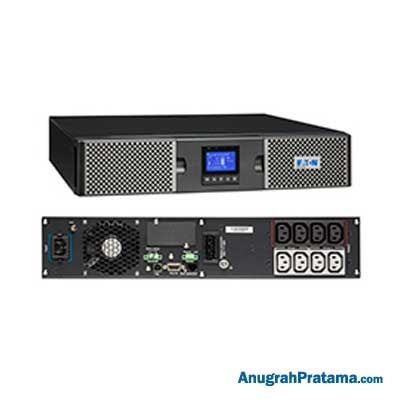

EATON 9PX 1kVA R/T 1000VA / 1000Watts Rack/Tower UPS (9PX1000IRT2U)

Deskripsi

Anugrahpratama.com Jual EATON 9PX 1kVA R/T 1000VA / 1000Watts Rack/Tower UPS (9PX1000IRT2U)

Spesifikasi:

General

• Topology : On-line double conversion with Power Factor Correction (PFC) system
• Configuration : Rack/Tower
• Rating (VA/Watts) : 1000/1000
• Rail Kit Included : Yes

Electrical Input

• Connection : (1) IEC-320-C14
• Input Voltage Range : 176-276V without derating (up to 100-276V with derating)
• Nominal Voltage : 200/208/220/230/240V
• Frequency : 50/60 Hz autoselection
• Frequency Range : 40-70 Hz

Electrical Output

• Nominal Voltage : 200/208/220/230/240V
• Outlets : (8) IEC-320-C13
• Efficiency (Normal Mode) : Up to 91.5% in online mode (up to 97.5% in Hi-efficiency mode)
• Output Frequency : 50/60 Hz autoselect, frequency converter mode

Battery

• Battery Management : ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
• Extended Battery Capability : EBM (2U)

Communications

• User Interface : Multilingual graphical LCD display
• Communication Ports : 1x USB port + 1x serial RS232 port + 1x mini-terminal block for remote ON/OFF + 1x mini-terminal block for Remote Power Off + 1x mini-terminal block for Output relay
• Communication Slot : 1x slot for Network-MS card, ModBus-MS or Relay-MS cards.

Part Number: 9PX1000IRT2U

Garansi produk: 2 Tahun
