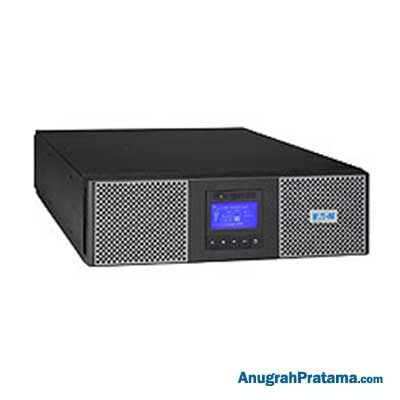

EATON 9PX 6KVA R/T 6000VA / 5400Watts Rack/Tower UPS (9PX6KiRT)

Deskripsi

Anugrahpratama.com Jual EATON 9PX 6KVA R/T 6000VA / 5400Watts Rack/Tower UPS (9PX6KiRT)

Spesifikasi:

General :
• Topology : On-line double conversion with Power Factor Correction (PFC) system
• Configuration : Rack/Tower
• Audible Noise : <45dB

Electrical Input :
• Connection : Hardwired – see manual for terminal block layout
• Input Voltage Range : 176-276V without derating (up to 100-276V with derating)
• Nominal Voltage : 200/208/220/230/240V
• Frequency : 50/60 Hz autoselection
• Frequency Range : 40-70 Hz
• Short Circuit Current : 90 A
• THDI : <5%

Electrical Output :
• Voltages : 200/208/220/230/240V +/- 1%
• Voltage THD : < 2%
• Outlets : 8x IEC-320-C13 + 2x IEC-320-C19 + Hardwired – see manual for terminal block layout
• Overload Capacity : 102-110% : 120s, 110-125%: 60s, 125-150%: 10s, >150%: 500ms
• Efficiency (Normal Mode) : Up to 94% in online mode (Up to 98% in Hi-efficiency mode)
• Output Frequency : 50/60 Hz autoselect, frequency converter as standard
• Load Crest Factor : 3:1
• Battery Management : ABM and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units
• Extended Battery Capability : EBM (3U)

Part Number: 9PX6KiRT

Antarmuka / Interface:

• Communication Ports : 1x USB port, 1x RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4x dry contacts (DB9), 1x mini terminal block for remote On/Off and 1x for remote power Off, 1x DB15 for parallel operation
• Communication Slot : 1x slot for Network-MS card, ModBus-MS or Relay-MS cards

Daya / Power: 6000VA / 5400Watts

Garansi produk: 2 Tahun
