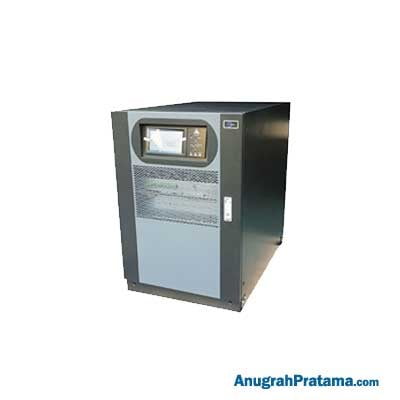

GTEC SR120 Plus 120 KVA Online UPS

Deskripsi

Anugrahpratama.com Jual GTEC SR120 Plus 120 KVA Online UPS

Spesifikasi:

• Input voltage window : 304V – 478V (line to line), 228V – 304V (line to netral)
• Rated input frequency : 50Hz / 60Hz
• Frequency window : 40Hz – 70Hz (Adjustable)
• Input THDi/ pf : 0.99
• Rated bypass voltage : 380V – 400V – 415V, 3 phase + N
• Bypass voltage window : Default – 20%, + 15%
• Rated bypass frequency : 50Hz / 60Hz
• Ouput power factor : 0,9
• Voltage stability : <1% at linear load, <6% full non-linear load
• Frequency stability : 50Hz / 60Hz +/- 0,1%
• Crest Factor : 3 : 1
• System Efficiency : 95% Online mode
• Cable : I/O dan grounding @10m
• Sound Pressure @1m : < 60 db
• Mechanical protection : IP20

Baterai: VRLA, AGM, SLA, GEL, NICAD

Garansi produk: 1 Tahun

Kapasitas: 120 kVA / 108 kW
Voltase Masuk: 380V – 400V – 415V, 3 phase + N
Voltase Keluar: 380V – 400V – 415V, 3 phase + N
Lain – lain:

• Input voltage window : 304V – 478V (line to line), 228V – 304V (line to netral)
• Rated input frequency : 50Hz / 60Hz
• Frequency window : 40Hz – 70Hz (Adjustable)
• Input THDi/ pf : 0.99
• Rated bypass voltage : 380V – 400V – 415V, 3 phase + N
• Bypass voltage window : Default – 20%, + 15%
• Rated bypass frequency : 50Hz / 60Hz
• Ouput power factor : 0,9
• Voltage stability : <1% at linear load, <6% full non-linear load
• Frequency stability : 50Hz / 60Hz +/- 0,1%
• Crest Factor : 3 : 1
• System Efficiency : 95% Online mode
• Cable : I/O dan grounding @10m
• Sound Pressure @1m : < 60 db
• Mechanical protection : IP20

Backup Times: +/- 10 menit
