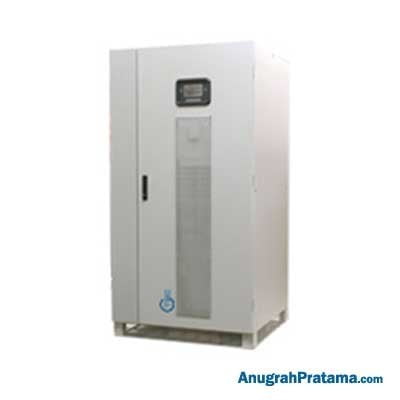

GTEC SUPREME Plus 120 Online UPS (120 KVA/108 KW) – Backup Time : 15 minutes

Deskripsi

Anugrahpratama.com Jual GTEC SUPREME Plus 120 Online UPS (120 KVA/108 KW) – Backup Time : 15 minutes

Spesifikasi:

• Voltage input tolerance : +20%, -25% with 320V – 480V fro 85% Load, 3 Phase
• Rated Frequency : 50Hz/60Hz
• Frequency : 45 – 65 Hz
• Input THDI : <=3% (linear load)/0.99
• Rated Bypass Voltege : 380/400/415 Vac, 3 Phase + N
• Bypass Voltage Window : Default – 20%, + 15%
• Bypass Frequency : 50Hz/60Hz
• Voltage Output : 380/400/415 Vac, 3 Phase + N
• Ouput Power factor : 0.9
• Static stability : += 1%
• Dynamic Variation : += 5%, in 20 msec to class 1 of EN62040-3
• Voltage distortion with linear load : <= 1%
• Crest Factor : 3:01
• Overload Capability on P.f 0.8 : 100% for 60 minutes, 125% for 10 minute, 150% for 1 min
• Voltage distortion with distorting load : <= 3% (according to IEC62040-3)
• Efficiency Smart mode : Up 98%
• Remote command : EPO and Bypass
• Operating & Storage temperature : 0.deg C – 40.deg C
• Noise level : 60 to 68 db
• Mechanical protection : IP20
• Relative humidity : <= 95% non condensing

Baterai: VRLA, AGM, SLA, GEL, NICAD

Garansi produk: 1 Tahun
