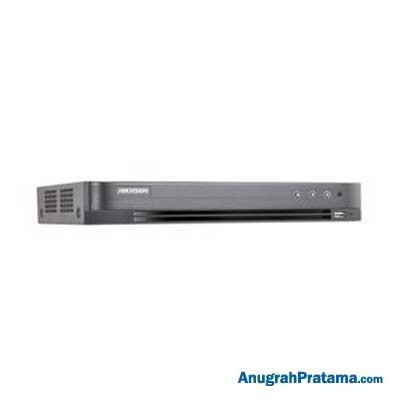

HIKVISION DS-7208HUHI-K1 Turbo HD DVR

Deskripsi

Anugrahpratama.com Jual HIKVISION DS-7208HUHI-K1 Turbo HD DVR

Spesifikasi:

Video/Audio Input :
• Audio Input : 4-ch
• Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Analog and HD-TVI video input : 8-ch,BNC interface (1.0Vp-p, 75 ohm), supporting coaxitron connection
• Supported camera types : Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 ; Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 ; Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 ; Support CVBS input
• Video Input Interface : BNC (1.0 Vp-p, 75 ohm)
• Audio Compression : G.711u
• Audio Input Interface : 4-ch, RCA (2.0 Vp-p, 1 K ohm)
• Two-way Audio : 1-ch, RCA (2.0 Vp-p, 1 K ohm), (using the 1st channel of audio input)

Video/Audio Output :
• CVBS Output : 1-ch,BNC(1.0Vp-p,75 ohm),resolution:PAL:704×576,NTSC:704×480
• HDMI/VGA Output : VGA: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz ; HDMI: 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
• Recording resolution : 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Video Bit Rate : 32 Kbps-10 Mbps
• Stream Type : Video/Video&Audio
• Two-way Audio : 1-ch, RCA (2.0 Vp-p, 1 k ohm) (using the audio input)
• Audio Output : 1-ch RCA(Linear, 1k ohm)
• Audio Bit Rate : 64kbps
• Dual Stream : Support
• Playback Resolution : 8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
• Synchronous Playback : 8-ch

Networking:

Network management :
• Remote connections : 64
• Network protocols : TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS,ONVIF

Antarmuka / Interface:

External Interface :
• Network Interface : 1; 10M / 100M / 1000M self-adaptive Ethernet interface
• USB Interface : 1 USB 2.0 Interface & 1 USB 3.0 Interface
• Serial Interface : 1; standard RS-485 serial interface, half-duplex
• Alarm Input : 8-ch
• Alarm Output : 4-ch

Garansi produk: 1 Tahun
Lain – lain:

General :
• Power Supply : 12 VDC
• Consumption : <= 20W(without hard disks)
• Working Temperature : -10 .deg C to +55 .deg C (14 .deg F to 131 .deg F)
• Working Humidity : 10% to 90%
