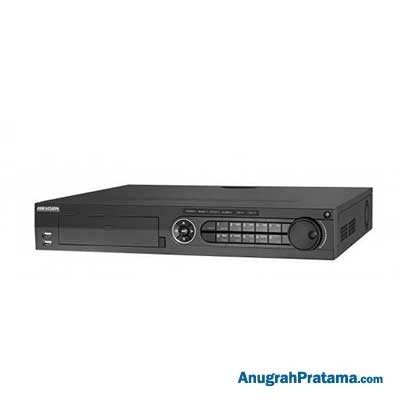

HIKVISION DS-7304HQHI-F4/N Turbo HD DVR

Deskripsi

Anugrahpratama.com Jual HIKVISION DS-7304HQHI-F4/N Turbo HD DVR

Spesifikasi:

• Audio Input : 4-ch
• Video Compression : H.264,H.264+
• Analog and HD-TVI video input : 4-ch,BNC interface (1.0Vp-p, 75 ohm)connection
• Supported camera types : Support HDTVI input: 3MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
  Note: The 3 MP signal input is only available for the first channel of DS-7304HQHI-F4/N
• IP Video Input : 2-ch (up to 6-ch)
• Video Input Interface : BNC (1.0 Vp-p, 75 ohm)
• IP Video Input Resolution : Up to 4 MP resolution
• Audio Compression : G.711u
• Audio Input Interface : 4-ch, RCA (2.0 Vp-p, 1 K ohm)
• Two-way Audio : 1-ch, RCA (2.0 Vp-p, 1 K ohm) (using audio input)
• CVBS Output : 1-ch,BNC(1.0Vp-p,75?),resolution:PAL:704×576,NTSC:704×480
• HDMI/VGA Output :
  HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz ; VGA:1-ch,2K(25601440)/60Hz,19201080/60Hz,12801024/60Hz,1280720/60Hz,1024768/60Hz
• Recording resolution : When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF
• Video Bit Rate : 32 Kbps-6 Mbps
• Stream Type : Video/Video&Audio
• Two-way Audio : 1-ch, RCA (2.0 Vp-p, 1 k ohm) (using the audio input)
• Audio Output : 1-ch RCA(Linear, 1k ohm)
• Audio Bit Rate : 64kbps
• Dual Stream : Support
• Playback Resolution : 3 MP/1080p/720p/VGA/WD1/4CIF/CIF
• Synchronous Playback : 4-ch
• Remote connections : 128
• Network protocols : TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS,ONVIF
• Interface Type : 4 SATA Interfaces
• Capacity : Up to 6 TB capacity for each disk
• Network Interface : 1; 10M / 100M / 1000M self-adaptive Ethernet interface
• USB Interface : 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel
• Alarm Input : 16-ch
• Alarm Output : 4-ch
• Power Supply : 100 to 240 VAC
• Consumption : <= 30W(without hard disks)

Garansi produk: 1 Tahun
