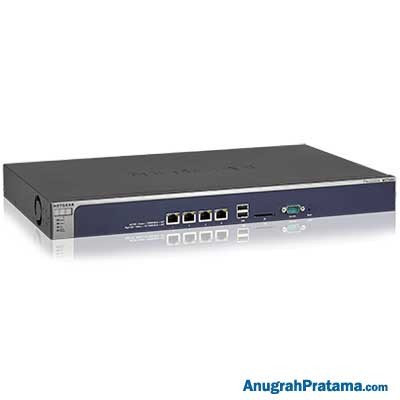

NETGEAR WC7600 ProSAFE Wireless Controller

Deskripsi

Anugrahpratama.com Jual NETGEAR WC7600 ProSAFE Wireless Controller

Fitur:

• Performance
• Business Value
• Scalability
• Ease of Use

Spesifikasi:

Supported AP Models:
• WAC730 802.11ac 3×3 (1.7 Gbps) Wireless Access Point
• WAC720 802.11ac 2×2 (1.3 Gbps) Wireless Access Point
• WNDAP660 802.11n 3×3 (900 Mbps) Wireless Access Point
• WND930 Outdoor Dual Band 802.11n (600 Mbps) Wireless Access Point
• WNDAP360 Dual Band 802.11n (600 Mbps) Wireless Access Point
• WNDAP350 Dual Band 802.11n (600 Mbps) Wireless Access Point
• WN370 802.11n (300 Mbps) Wall Mount Wireless Access Point
• WNAP320 802.11n (300 Mbps) Wireless Access Point
• WNAP210 802.11n (300 Mbps) Wireless Access Point

Maximum AP Supported per Controller:
• 2 (default)
• 50 with Incremental 10-AP License Upgrades (WC10APL-10000S)

Redundancy Support of Wireless Controller:
• Stackable up to 3 controllers for a total support of 150 Access Points
• Supporting N + 1 redundancy with a maximum configuration of 3 active controller and 1 standby

Maximum Profile Groups per Controller:
• 8
• Each access point belongs to only one profile group

Maximum Floorplans per Controller:
• 3 (default)
• Additional floorplans possible with USB local storage (up to a maximum of 18 floorplans)

Maximum Clients per AP:
• WNAP210 support up to 32 clients
• WNAP320 support up to 64 clients
• WN370 support up to 64 clients
• All other APs support up to 128 clients

Maximum VLANs per Controller:
• 64 VLANs for SSIDs
• 1 configurable management VLAN

DHCP Server/Relay:
• Integrated DHCP server
• Multiple DHCP server/pool can be added for different VLANs (up to 64)

RF Monitoring:
• Coverage computing per floor plan
• Alert for any detected coverage holes with mitigation options with neighboring APs
• Rogue AP/blacklisted clients triangulation

Client Authentication Protocols:
• Open, WEP, WPA/WPA2-PSK
• 802.11i/WPA/WPA2 Enterprise with standard interface to external AAA/RADIUS Server
• Local ACLs (512 MAC)
• MAC ACLs based on local AAA Server or external Radius Server

RADIUS Accounting Protocol:
• Per Client tracking for Bytes Tx/Rx and
• Connect/disconnect time

Rogue Access Points:
• Rogue AP definition: AP with radio SSID observed by any of the managed APs and seen transmitting on same L2 wired network
• Detection and mapping of up to 512 rogue APs
• Rogue access points reported
• Rogue access points in same channel
• Rogue access points in interfering channels

Wireless Clients:
• Clients statistics and details per AP, per SSID, per floor, per location
• Blacklisted clients, roaming clients

Wired IEEE Standards:
• IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
• IEEE 802.1Q VLAN tagging
• IEEE 802.11a, 802.11b, 802.11g, 802.11n
• WMM (from 802.11e)

• Supported Modes: Wireless-A/B/G/N/AC
• Main Functionality: Wireless Controller
• Number of Access Points: 50 per controller (Default support of 2 with optional license to support up to 50 AP’s)
• Maximum Security Profiles (SSID) per Profile Group: 8 per radio (2.4 GHz; 5 GHz)
• Maximum Security Profiles (SSID) per Controller: 128
• Maximum Rogue APs Detectable per Controller: 512
• Number of Captive Portals per Controller: 1
• Maximum Clients per Controller: None other than maximum clients per AP
• L2 Mobility: L2 fast roaming support between the APs
• L3 Mobility: L3 fast roaming support with encrypted tunnelling between the APs and the controller
• VLANs for the Wireless Controller: One management VLAN (configurable VLAN ID)
• VLANs Access Points / Multiple SSIDs: 64 VLANs
• WMM Power Save Option: WMM power save helps conserve battery power in small devices such as phones, laptops, PDAs, and audio players using IEEE 802.11e mechanisms
• Rate Limiting: Rate limit per SSID set as a percentage of total available bandwidth
• LDAP-based Authentication: Standard interface to external LDAP server/Microsoft Active Directory Server
• Integrated AAA Server: Local database authentication based on WC7520 internal AAA Server
• Captive Portal: Configurable portal page, including image files
• Monitoring Summary: Summary of managed access points status, rogue access points detected, wireless stations connected, Wireless Controller information and wireless network usage
• Managed Access Points: AP status for the managed access points and details that includes configuration settings, current wireless settings, current clients and detailed traffic statistics
• Wireless Network Usage: Network usage statistics display plots of average received/transmitted network traffic per managed access point.
• DHCP Leases: DHCP details for wireless clients
• Management Interface: HTTP, SNMP v1/v2c, telnet, Secure Shell (SSH)
• Diagnostics: Managed access points ping
• Maintenance: Save/restore configuration, restore to factory defaults, admin password change, add user (read-only), firmware upgrade via Web browser for the Wireless Controller and the managed access points
• SNMP: SNMP v1/v2c
• Gigabit RJ45 Ports LAN: Switch 4-port 10/100/1000
• Major Regulatory Compliance: FCC Class A, CE, WEEE, RoHS

Garansi produk: Lifetime dari Distributor Resmi di Indonesia
