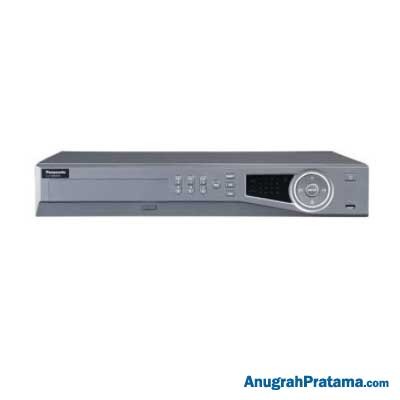

PANASONIC K-NL404K/G 4 ch 4 PoE Network Video Recorder

Deskripsi

Anugrahpratama.com Jual PANASONIC K-NL404K/G 4 ch 4 PoE Network Video Recorder

Spesifikasi:

Supported Camera :

• Compatible vendor : Only E-Series camera
• Supported Image Format : H.265 / H.264
• Supported Audio Format : G.711, G.711 mikro, G.726, PCM
• Supported Image Resolution : 5 MP, 4 MP, 3 MP, 1080 P, 1.3 MP, 720 P, D1 etc.

General :

• IP Camera Input : 4 channels
• Audio : 1 Channel Input, 1 Channel Output, RCA
• Interface : 1x HDMI (up to 3840×2160), 1x VGA, 2x USB Ports (2 USB2.0), 1x RJ45 Port (10/100 Mbps
• Resolution : 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
• Display Split : 1 / 4
• OSD : Camera title, Time, Video loss, Camera lock, Motion detection, Recording
• Internal HDD : 1x SATA III Port, Up to 8 TB capacity for each HDD
• Power Supply : DC48 V/1.5 A
• Trigger Events : Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips
• Video Detection : Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering

Recording :

• Maximum Bandwidth : Total 80 Mbps or less
• Bit Rate : 16 Kbps – 20 Mbps Per Channel *Suggested to set bit rate for E-Series camera to 2 Mbps or less
• Record Mode : Manual, Schedule {Regular, MD(Motion Detection), Alarm}, Stop
• Record Interval : Recording duration : 1 – 120 min (default : 60 min), Pre-record : 1 – 30 sec, Post-record : 10 – 300 sec

Playback & Backup :

• Sync Playback : 1 / 4
• Search Mode : Time /Date, Alarm, MD and Exact Search (accurate to second)
• Playback Function : Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuf e, Backup Selection, Digital Zoom
• Backup Mode : USB Device / Network

Network :

• Ethernet Port : 1 Independent 100 Mbps Ethernet Port
• PoE : 4 ports (IEEE802.3at/af) (4 Mbps is recommended per channel) Max 25.5 W for single port, 48 W in total
• Network Function : HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP*, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, IP Search *Suggested to synchronize to external NTP server
• Max. User Access : 128 users
• Smart Phone : iPhone, iPad, Android

Garansi produk: 1 Tahun
