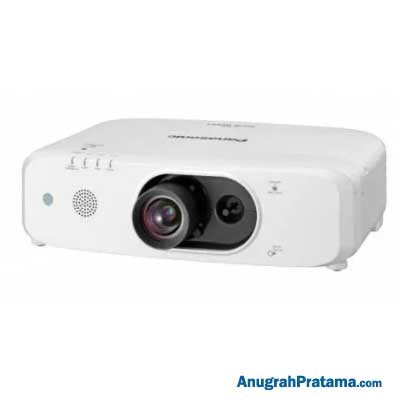

PANASONIC PT-FZ570 4500 Lumens WUXGA Projector

Deskripsi

Anugrahpratama.com Jual PANASONIC PT-FZ570 4500 Lumens WUXGA Projector

Spesifikasi:

General :

• LCD Panel | Panel Size : 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
• LCD Panel | Display Method : Transparent LCD panel (x 3, R/G/B)
• LCD Panel | Drive Method : Active matrix
• Light Output : 3,300 lm
• LCD Panel | Pixels : 2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels
• Lens : Manual zoom (throw ratio 1.22-2.26:1), Manual focus, F 1.6-2.2, f 17.1-31.7 mm
• Lamp : 270 W UHM lamp Lamp replacement cycle 6,000 hours (lamp power: Normal), 8,000 hours (lamp power: Eco) This is the maximum value when the lamp is turned on for 2 hours and off for 0.25 hours
• Screen Size : 1.02- 7.62 m (40-300 inches) (16:10 aspect ratio)
• Brightness : 4,500 lumens (Lamp power: Normal, Dynamic mode, Iris off, Daylight View:off, Auto Power Save:off)
• Center-to-Corner Uniformity : 90%
• Contrast : 10,000:1 (Lamp power: Normal, Dynamic mode, Iris on, Daylight View:off, Auto Power Save:off)
• Resolution : 1,920 x 1,200 pixels
• Keystone Correction : Range Vertical +/-25 deg, horizontal +/-30 deg
• Optical Axis Shift : Vertical: +/-60% (Manual), Horizontal: +/-30% (Manual)
• Installation : Ceiling/floor, front/rear
• Speaker : 4.0 cm (1-9/16 in) 10W (monaural) x 1

Interface :

• HDMI Deep Color, compatible with HDCP, Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
• D-sub HD 15-pin (female) x 1
• RGB 0.7 Vp-p, 75 ohms, (G: 1.0 Vp-p, 75 ohms for sync on G) HD/VD, SYNC: TTL, high impedance, positive/negative automatic
• Y: 1.0 Vp-p (including sync signal), PBPR(CBCR): 0.7 Vp-p, 75 ohms
• Y: 1.0 Vp-p (including sync signal), C: 0.286 Vp-p, 75 ohms
• D-sub HD 15-pin (female) x 1
• Pin jack x 1, 1.0 Vp-p, 75 ohms
• M3 x 2, 0.5 Vrms, input impedance: 22 kilohms or more
• Pin jack(L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more
• M3 x 1 (monitor out, stereo) 0-2.0 Vrms, variable, output impedance: 2.2 kilohms or less
• D-sub 9 p x 1, for external control (RS-232C compliant)
• RJ-45 x 1 (HDBaseT compatible), 100Base-TX, PJLink (Class 1), Deep Color, compatible with HDCP A udio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
• RJ-45 x 1 for network connection 10Base-T/100Base-TX, compatible with Art-Net, PJLink (Class 1)
• USB Type A x 1, for wireless projection with optional dongle (ET-WML100)
• USB Type A x 1, for power supply (DC5 V, max 900 mA)

Garansi produk: 1 Tahun
