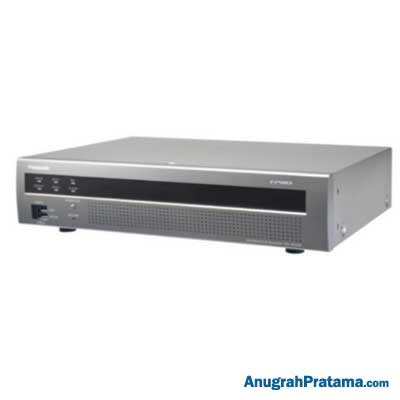

PANASONIC WJ-NX200K/G 9 ch Network Video Recorder

Deskripsi

Anugrahpratama.com Jual PANASONIC WJ-NX200K/G 9 ch Network Video Recorder

Spesifikasi:

Supported Camera :

• Compatible vendor : i-PRO series Network cameras, ONVIF NVT conformant camera and encoder
• Supported Image Format : H.265(HEVC), H.264, JPEG
• Supported Audio Format : G.711 for Onvif, G.726 (ADPCM) 32 kbps, AAC-LC
• Supported Image Resolution (Depending on the camera) : Aspect ratio [4 : 3]: 4000×3000, 2560×1920, 2048×1536, 1280×960, 800×600, 640×480 ; Aspect ratio [16 : 9]: 3840×2160, 2560×1440, 1920×1080, 1280×720, 640×360 ; Aspect ratio [1 : 1]: 2992×2992, 2816×2816, 2048×2048, 1280×1280 ; Aspect ratio [9 : 16]: 1080×1920, 720×1280, 360×640
• Maximum Number of Cameras : Max. 32 (Default number of cameras : 9)

General :

• Camera Control : Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset, Auto Back Focus, Aux, Wiper (for WV-SUD638)
• Multiscreen Mode : [Main monitor] ?ontrol screen 4 / 9 / 16 split screen display ?ide view screen 3 / 4 / 6 / 9 / 12 / 16 / 24 / 32 split screen display, 1 screen sequence, 4 / 9 / 16 split screen sequence [Sub monitor] 1 / 4 / 9 / 16 / 24 / 32 split screen display, 1 screen sequence, 4 / 9 / 16 split screen sequence
• Playback Control : PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record, Prev Image, Next Image, Go to Date, Go to Last (30 s)
• Search Mode : Search criteria : Time date, Playback by designating a timeline, VMD, Thumbnail
• Copy : Recorded data of selected cameras and time date range can be copied to USB storage
• Digital Zoom : Live / Play: 1.25x 1.5x 1.75x, 2x, 2.5x, 3x, 3.5x 4x, 5x, 6x, 7x, 8x (only for 1-screen or 4-screen)
• 360 Camera Dewarp : Only 1ch display mode
• Re-Encoding : 2Client
• SD Memory Data Download : Images recorded in the SD card in the i-PRO series cameras can be transferred to the recorder automatically. (H.265/H.264)
• GUI Language : Setup page in English, French, Italian, Spanish, German, Russian,Portuguese, Thai, Simplified Chinese, Japanese
• Required PC : CPU : IntelR Core. i7-860 or faster , RAM : 4 GB or more, VRAM : 128 MB or more (Min. 64 MB), MicrosoftR DirectXR 9.0c or later
• Spot Output Connector : 1x 1 V [p-p] / 75 ohm (BNC) NTSC /PAL (selectable in setup menu)
• Audio Output Connector : -10 dBv, 600 ohm, unbalanced x1 (RCA pin jack)
• Mouse Connection Port : 2 (Front 1, Rear 1)
• USB Storage : USB 3.0 / USB 2.0 memory, USB 3.0 / USB 2.0 connected HDD (except bus powered device)
• No. of Simultaneous Users : 16 or less
• User Registration : Up to 32 users
• User Level : 3 Levels (Programmable)
• HDD Type : 8.89 cm (3.5 inch) Serial ATA HDD, Up to 2x HDDs can be installed
• Maximum Capacity : Up to 12 TB will be supported
• Power Consumption : approx. 56 W
• Power Source : 220 V – 240 V AC 50 Hz/60 Hz

Recording :

• Pre-alarm Recording : Up to 15 seconds *When the delivery speed from the network camera is less than 4 Mbps
• Sub-stream Recording : 64 / 128 / 256 / 384 / 512 / 768 kbps
• Record Mode : Event, Schedule, Emergency
• Scheduled Recording Mode : 16 programs, 6 time zones/day, Independent setup for each day of the week
• Frame Rate/Camera : Up to 60 fps (Depending on the camera)

Network :

• Network Interface : 2x 10BASE-T / 100BASE-TX / 1000BASE-T (RJ45)
• Maximum Recording Rate : 192 Mbps or less
• Maximum Band Width : Total 384 Mbps or less
• Supported Protocol : IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, RTP, RTSP, ICMP, ARP IPv6 : ICMPv6
• E-mail : Upon Alarm or Warning

Garansi produk: 1 Tahun
