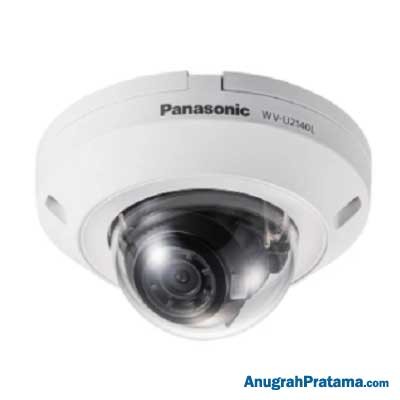

PANASONIC WV-U2140L 4MP Indoor Dome Network Camera

Deskripsi

Anugrahpratama.com Jual PANASONIC WV-U2140L 4MP Indoor Dome Network Camera

Spesifikasi:

Camera :

• Image Sensor : Approx. 1/2.7 type CMOS image sensor
• Effective pixels : Approx. 5.2 megapixels, 2688(H)x1944(V)
• Min Illumination : Color: 0.3 lx, BW : 0.12 lx (50IRE, F2.0, Maximum shutter : Off (1/30s), AGC : 11) ; BW : 0 lx (50IRE, F2.0, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit) ; Color : 0.019 lx, BW : 0.0075 lx (50IRE, F2.0, Maximum shutter : max. 16/30s, AGC : 11)
• Maximum shutter : Max. 1/10000 s to Max. 16/30 s [30fps mode], Max. 1/10000 s to Max. 16/25 s [25fps mode]
• Back light compensation : BLC (Back light compensation) / HLC (High light compensation) / Off The level can be set in the range of 0 to 31 (only when Super dynamic / Intelligent Auto : Off)
• Intelligent Auto : On / Off
• Super Dynamic : On / Off, the level can be set in the range of 0 to 31
• Dynamic Range : Max. 120 dB (Super Dynamic: On, Level: 31)
• White Balance : ATW1/ ATW2/ AWC
• Maximum gain (AGC) : The level can be set in the range of 0 to 11
• Color/BW (ICR) : Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
• Digital Noise Reduction : The level can be set in the range of 0 to 255

Lens :

• Focal Length : 3.2 mm [1/8 inches]
• Optical zoom : 1x
• Extra zoom : 1.0x – 1.3x(when resolution is 1920×1080)
• Digital (electronic) zoom : Choose from 3 levels of x1, x2, x4
• Angular Field of View : [16 : 9 mode] Horizontal : 100 deg, Vertical : 54 deg, *[4:3 mode] is not supported
• Maximum Aperture Ratio : 1:2.0
• Focusing Range : 1 m [39-3/8 inches]

Network :

• Network : 10Base-T / 100Base-TX, RJ45 connector
• Resolution : [16 : 9 mode] 2560×1440, 1920×1080, 640×360, 320×180, *[4:3 mode] is not supported
• No. of Simultaneous Users : Up to 14 users (Depends on network conditions)

General :

• Power source : PoE (IEEE802.3af compliant)
• Power Consumption : DC48 V 110 mA, Approx. 5.3 W (Class 2 device)

1 Tahun
