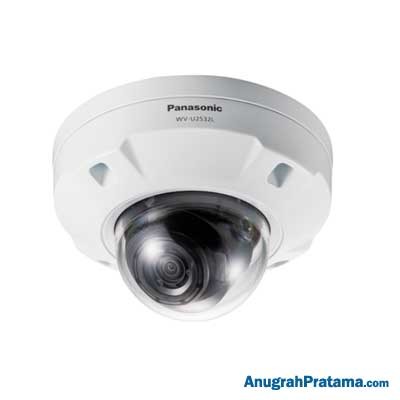

PANASONIC WV-U2532L Full HD Varifocal Lens Outdoor Dome Network Camera

Deskripsi

Anugrahpratama.com Jual PANASONIC WV-U2532L Full HD Varifocal Lens Outdoor Dome Network Camera

Spesifikasi:

Camera :

• Image Sensor : Approx. 1/2.7 type CMOS image sensor
• Min Illumination : Color: 0.1 lx, BW: 0.04 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11) ; BW : 0 lx {0 footcandle} (50IRE, F2.0, Maximum shutter: OFF (1/30 s), AGC: 11, when the IR LED is lit) ; 0.006 lx, BW: 0.0025 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
• Maximum shutter : [30fps mode] Max. 1/10000 s to Max. 16/30 s, [25fps mode] Max. 1/10000 s to Max. 16/25 s
• Back light compensation : BLC/ HLC/ Off (only when Super Dynamic/ Intelligent auto: Off)
• Intelligent Auto : On / Off
• Super Dynamic : On / Off, the level can be set in the range of 0 to 31
• Dynamic Range : Max. 120 dB (Super Dynamic: On, Level: 31)
• White Balance : ATW1/ ATW2/ AWC
• Maximum gain (AGC) : The level can be set in the range of 0 to 11
• Color/BW (ICR) : Off/ On (IR Light Off)/ On (IR Light On)/Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC)
• Digital Noise Reduction : The level can be set in the range of 0 to 255

Lens :

• Focal Length : 2.9 mm – 7.3 mm [1/8inches-9/32inches]
• Zoom ratio : 2.5x Optical zoom (Motorized zoom / Motorized focus), 2.5x – 3.8x Extra Optical Zoom (when resolution is 1280×720)
• Digital (electronic) zoom : Choose from 3 levels of x1, x2, x4
• Angular Field of View : [16 : 9 mode] Horizontal : 43 deg (TELE) – 100 deg (WIDE), Vertical : 24 deg (TELE) – 55 deg (WIDE), [ 4 : 3 mode] Horizontal : 35 deg (TELE) – 82 deg (WIDE), Vertical : 27 deg (TELE) – 61 deg (WIDE)
• Maximum Aperture Ratio : 1:2.0 (WIDE) – 1:3.0 (TELE)
• Focusing Range : 1 m [39-3/8 inches]

Network :

• Network : 10Base-T / 100Base-TX, RJ45 connector
• No. of Simultaneous Users : Up to 14 users (Depends on network conditions)

General :

• Power source : PoE (IEEE802.3af compliant)
• Power Consumption : DC48 V 140 mA, Approx. 6.7 W (Class 0 device)

1 Tahun
