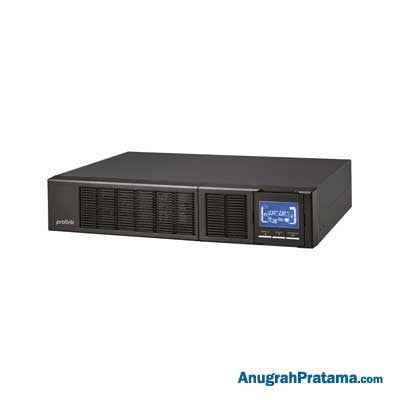

PROLINK PRO901ERS 1000VA / 900W Online UPS

Deskripsi

Anugrahpratama.com Jual PROLINK PRO901ERS 1000VA / 900W Online UPS

Spesifikasi:

GENERAL :

• UPS Type : Rack / Tower
• Phase : Single phase with ground
• Capacity : 1000 VA / 900W
• Front panel : Status LED, Function keys, LCD display
• Communication : Smart RS232 USB Port

INPUT :

• Connection Type : IEC 320-C14
• Nominal Voltage : 200/208/220/230/240 VAC
• Voltage Range : 110-300 VAC (Load at 50%) ; 160-280 VAC (Load at 100%)
• Frequency Range : 40 – 70 Hz
• Power Factor : >= 0.99

OUTPUT :

• Connection Type : Standard Model: 4x IEC 320-C13, 1x Universal Socket ; Long-Run Model: 6x IEC 320-C13
• Nominal Voltage : 200/208/220/230/240 VAC
• Voltage Regulation : +/-1%
• Frequency Range (Synchronized Range) : 47 – 53 Hz or 57 – 63 Hz
• Frequency Range (Batt. Mode) : 50 Hz +/- 0.25 Hz or 60 Hz +/- 0.3 Hz
• Current Crest Ratio : 3:1
• Harmonic Distortion : <= 3% THD (Linear load) ; <= 6% THD (Non-linear load)

BATTERY :

Standard Model :

• Battery Type : 12 V / 9 Ah
• Numbers : 2
• Typical Recharge Time : 4 hours recover to 90% capacity
• Charging Current (max.) : 1 A
• Charging Voltage : 27.4 VDC +/- 1%

Long-run Mode :

• Battery Type : Depending on the capacity of external batteries
• Numbers : 3
• Charging Current (max.) : 1.0A/2.0A/4.0A/6.0 A
• Charging Voltage : 41.0 VDC +/- 1%

Garansi produk: 1 Tahun
