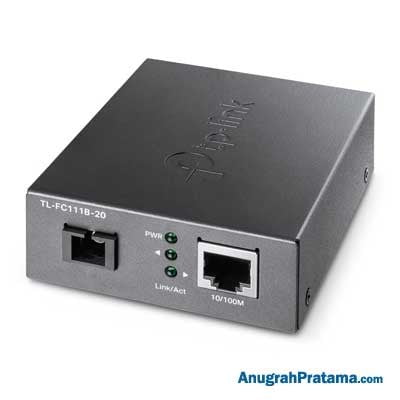

TP-LINK TL-FC111B-20 10/100 Mbps WDM Media Converter

Deskripsi

Anugrahpratama.com Jual TP-LINK TL-FC111B-20 10/100 Mbps WDM Media Converter

Spesifikasi:

• Standards and Protocols : IEEE 802.3, IEEE 802.3i, IEEE802.3u
• Basic Function : Auto-negotiation of half-duplex / full-duplex transfer mode, Full-duplex flow control (IEEE 802.3x), Half-duplex flow control (Backpressure), Extends fiber distance up to 20km (12.4 miles)
• Wave Length : 1310 nm TX, 1550 nm RX
• WDM TX : 1310 nm
• WDM RX : 1550 nm
• Network Media 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100ohm STP (maximum 100m)
• Network Media : 100BASE-T UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100ohm STP (maximum 100m)
• Network Media 100BASE-FX : Single-mode Fiber
• LED Indicators : PWR, Link/Act
• Power Supply : External Power Adapter: 5 V/0.6 A
• Fiber Type : 9/125 micrometer single-mode fber (</=20 km)
• Antenna Connector Type : 1x SC fiber optic, 1x RJ45 jack

Antarmuka / Interface:

• 1x 100M SC/UPC port
• 1x 10/100M RJ45 port (Auto MDI/MDIX)

Garansi produk: 1 Tahun
